D-lab: innovative system for measuring of the dies diameters
By the partnership of the leading companies Koner (Tkt Group) and Aeroel (Marposs Group), which have combined the deep knowledge and expertise of the application sector for this project, the most innovative and efficient system for measuring of the dies diameter is born: D-lab!

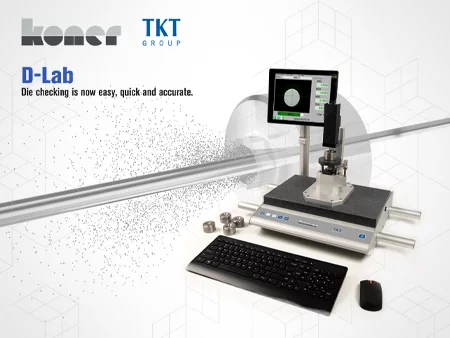

D-Lab is a high performance, easy to use die checking equipment. Very efﬁcient and very quick to control diameter and ovality of drawing dies. Repeatable and objective results not affected by operator’s skill:
• Contactless measurement.
• Based on telecentric optics and LED collimated illuminator.
• Image analysis using 2D CMOS sensor and subpixel edge detecting algorithm.
• Highly ﬂexible: different dies can be measured without system re-mastering.
• Rugged construction suitable to be used in workshop environment.
• All In One embedded PC using high reliability motherboard designed and made in Italy.
• All measured data saved in memory and ready to be exported or printed.
Easy to use, the software has been designed to be extremely user friendly and very ﬂexible. The measurement range is 0.5 - 8mm, the accuracy is ± 1 μm and the measurement time is only 1 second!
Tkt Group, by its Koner company, is the exclusive distributor of the measuring system for the worldwide steel wire market. Our sales offices are at your complete disposal for any further information.
